Quick Details

  • Place of Origin: Henan, China (Mainland)
  • Brand Name: OEM
  • Model Number: CU/XLPE/CWS/PVC
  • Insulation Material: XLPE
  • Type: Medium Voltage
  • Application: Underground
  • Conductor Material: Copper
  • Jacket: PVC
  • Product name: 8.7/15kV CU/XLPE/CWS/PVC Power Cable
  • Standard: IEC60502
  • Color: BLACK
  • Certificate: ISO9001/CCC
  • Insulation: XLPE
  • Sheath: PVC
  • Rated voltage: 8.7/15kV

Packaging & Delivery

Packaging Details Wooden Drum
Port SHANGHAI or Qingdao
Product Description
Features
UL Listed as MV-90. Rated as Sunlight Resistance. Oil Resistance I jacket. True Triple extrusion system and
closed handling raw materials system, to eliminate any contact with ambient, until extrusion process ends.

Application
Primary power and distribution circuits in industrial and commercial installations, power circuits in generating plants where line to ground fault current are within shield capabilities. May be used in wet or dry
locations, installed in raceways, duct, and open air, aerially or directly buried as permitted by NEC.

Standards
UL 1072: Medium Voltage Power Cables.
ICEA S-93-639/NEMA WC74: 5 kV - 46 kV Shielded Power Cables.
ICEA S-97-682: Standard for Utility Shielded Power Cables Rated 5 kV - 46 kV.
AEIC CS8: Specification for Extruded Dielectric, Shielded Power Cables Rated 5 kV - 46 kV.

Specifications
Maximum operating voltage: 5 kV to 35 kV 100% and 133% IL
Maximum conductor operation temperatures: Wet and dry locations: Normal: 90 °C, Emergency: 130 °C, Short Circuit: 250 °C


Engineering Information

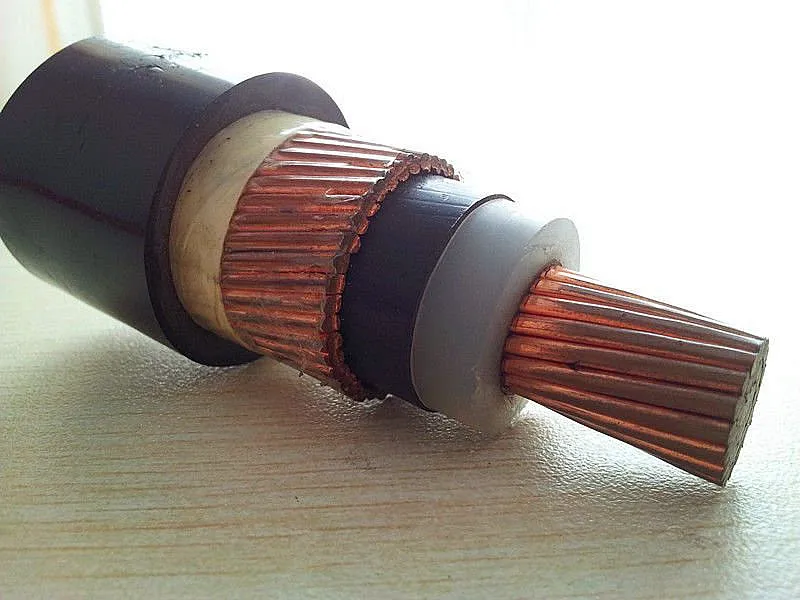

1. Conductor: Soft annealed uncoated copper compacted Class B per ASTM B496 or hard drawn Aluminum-1350 compacted Class B per ASTM B400. On request, strand filled or compressed strand. Sizes: 8 AWG (6 AWG Aluminum) up to 1000 kcmil.
2. Conductor Shield: Semi conducting cross-linked polyethylene (XLPE).
3. Insulation: Thermoset crosslinked polyethylene (XLPE). On request, TR-XLPE.
4. Insulation Shield: Semi conducting cross-linked polyethylene (XLPE).
5. Metallic Shield: Solid soft annealed uncoated copper wires per ASTM B3, helically applied and uniformly spaced.
6. Binder Tape: A suitable tape, as required.
7. Jacket: Black sunlight resistance and flame retardant polyvinyl chloride (PVC) compound.

Number of cores and cross-sectionShape of conductorConductor diameterNominal insulation thicknessDiameter over insulationNominal thickness sheathOuter diameter (approx.)Bending radius (min.)Weight (approx.)
  (approx.) (approx.)
mm2 mmmmmmmmmmmmkg/km
1x35/16RM7.23.415.32.524360904
1x50/16RM8.23.416.32.5263901039
1x70/16RM9.83.417.92.5274051271
1x95/16RM11.33.419.42.5294351530
1x120/16RM12.83.420.92.5304501809
1x150/25RM14.23.422.32.5324802158
1x185/25RM15.83.423.92.5334952524
1x240/25RM18.33.426.42.5365403117
1x300/25RM20.73.428.82.5385703786
1x400/35RM23.33.431.42.5416154750
1x500/35RM26.53.434.62.5446605786

陕西快乐十分彩票官网 www.vrjzub.com.cn



Company Information

Henan Hongda Cable  Co., Ltd.

Established Year: 2013
Registered capital of RMB:51,600,000
Factory Area:300,000m2



Main products:

Areial bundle cable ,XLPE insulated power cable ,PVC insulated power cable ,electrical wire ,bare aluminum conductor(AAC AAAC ACSR )and so on



Main  export county:

USA Philippines Malaysia Indonesia Venezuela, Colombia  Mexico

Dominica  India  South  Africa  Zambia  Kenya and so on .




Our Services

As you know there are so many cable manufacture, we are one of the biggest manufacture in china-mainland. We will give you a perfect shopping experience . If you need visit our factory , we will meet you at the airport or train station.



Also we can offer other service



Custom Merchandise:we can make cable as your need inlude the color ,size and so on.we also offer OEM .



Complete Course Tracking:we can offer you the service from the business begin to you get the cable and use it .



Cable sample : we can offer the sample free

Packaging & Shipping





 Packing

Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.


 Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!


Shipping Port:

Shanghai, Qingdao, or other ports as per your requireents.


Sea freight:
FOB/C&F/CIF quotation are all available.



*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency.

Why Choose Us



1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas

FAQ

Q: Are you trading company or manufacturer ?



A: We are factory.



Q: How long is your delivery time?



A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?



A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?



A: 30% T/T in advance,70% T/T balance before shipment
